Welcome to this guide on how to use Oracle HCM Visual Builder Studio to edit Redwood Pages. Organizations often need to customize pages to fit their unique requirements. This guide will walk you through the steps to modify pages, such as hiding unnecessary fields and displaying relevant ones.

  Why Edit Redwood Pages?

By default, Redwood Pages in Oracle HCM include all general details. However, when deploying an instance in an organization, specific requirements often arise. For example, during the addition of a pending worker, certain details like passport information might not be needed initially but may be required later after converting the worker to an employee. Customizing these pages can help simplify processes and avoid confusion.



    Step-by-Step Guide



     Step 1: Open Oracle HCM Visual Builder Studio

  1. Open your preferred browser and navigate to Oracle HCM Visual Builder Studio.
  2. Log in with your credentials.

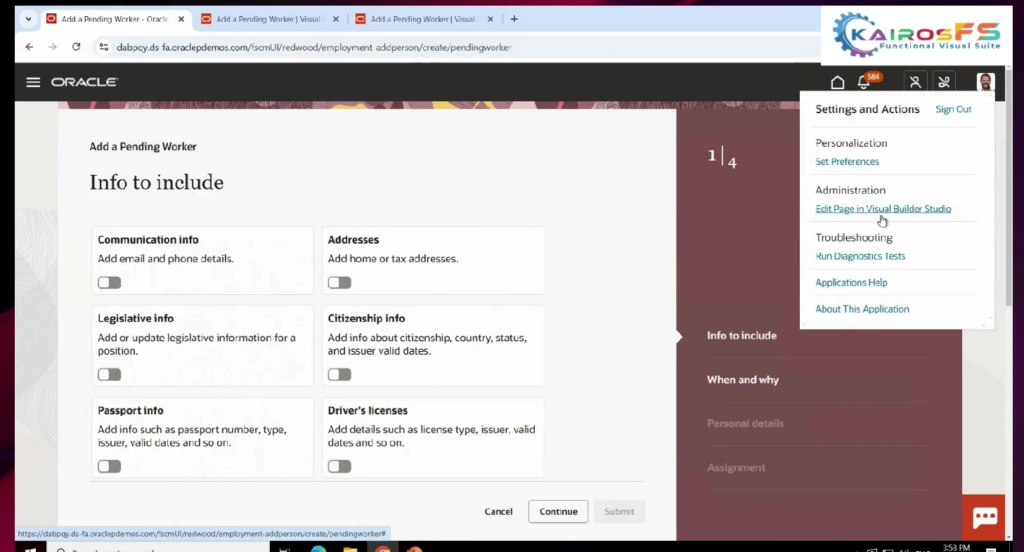

     Step 2: Edit the Redwood Page

  1. Select the user you want to modify the page for.
  2. Click on the “Edit Page” option to open the Visual Builder Studio.

Step 3: Access Configuration Options

Once directed to the Visual Builder Studio screen, you will see the UI and other options available for modification.



  1. Select the “Configure Fields and Regions” option.
  2. You will be taken to the corresponding screen for editing.

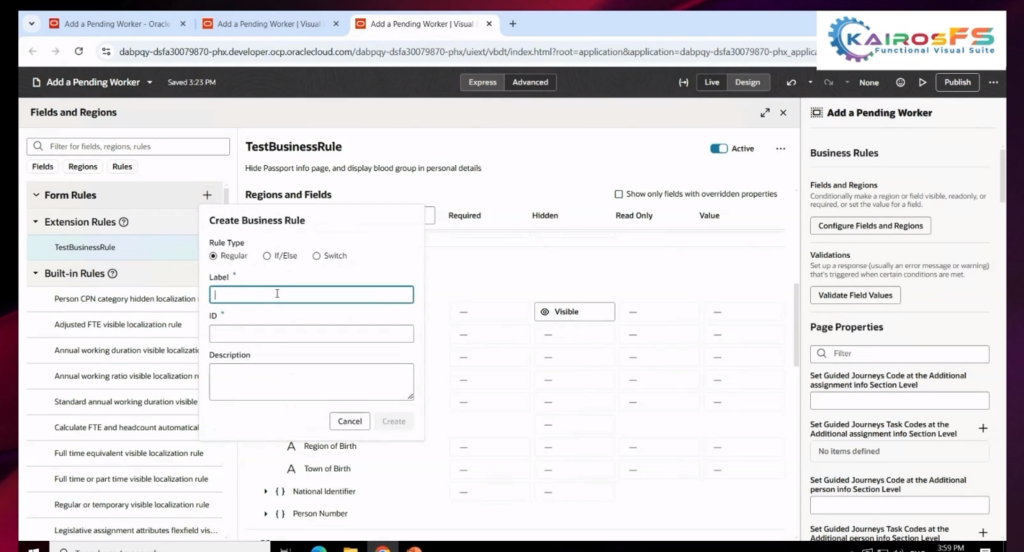

     Step 4: Add a Form Rule

  1. Add a new form rule. For example, create a rule named “Test Business Rule.”
  2. In the description, specify the changes you want to make, such as hiding the passport information section and displaying the blood group in personal details.

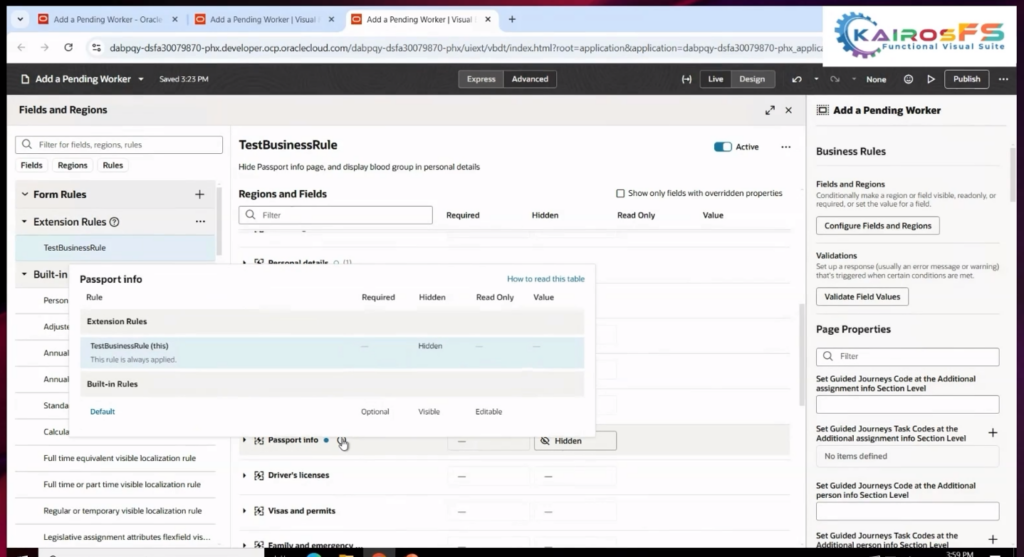

 Step 5: Modify Field Visibility

  1. The passport info field typically has default settings of “Optional,” “Visible,” and “Editable.”
  2. Change the visibility of the passport info field to “Hidden” by selecting the hidden option.

   Step 6: Display Additional Fields

  1. On the personal details page, locate the “Blood Type” field.
  2. Change its visibility from “Hidden” to “Visible.”

 Step 7: Preview and Publish Changes

  1. To verify the changes, select the “Preview” option.
  2. Once satisfied with the preview, click on “Publish.”
  3. The changes will be saved to GitHub and reflected in the deployed instance.

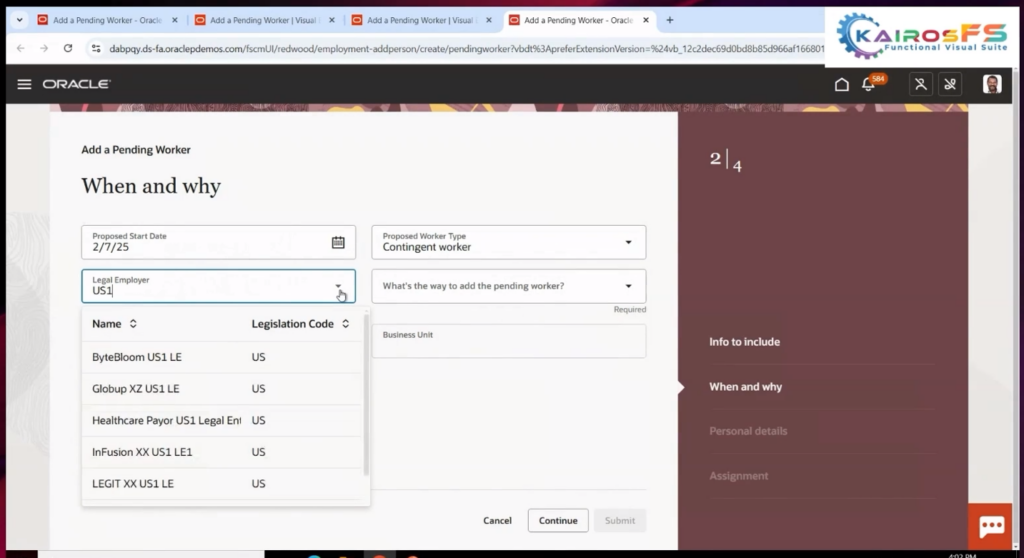

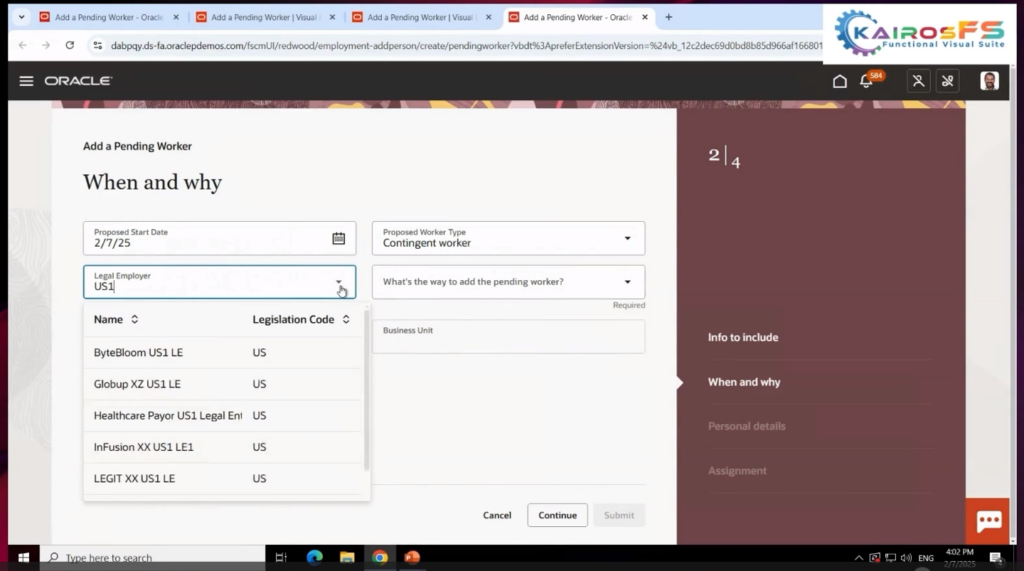

 Verification of Changes

After publishing:

– The passport info section should no longer be available on the “Add Pending Worker” page.

– The blood type option should now be visible on the personal details page.

 Conclusion

Editing Redwood Pages in Oracle HCM Visual Builder Studio allows you to tailor the user interface to fit organizational needs. By following the steps outlined above, you can efficiently hide unnecessary fields and display relevant details for better usability.



Thank you for reading this guide! If you have any questions or need further assistance, feel free to reach out to our support team.
